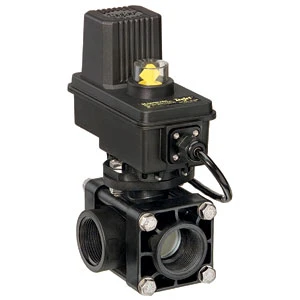

346 Series Shutoff Ball Valve

346 Series Shutoff Ball Valve by TeeJet Technologies®

• 25 RPM, 0.6 second shutoff fully open to close.
• The flow rate for the 346BEC 2-way valve is 100 GPM (379 l/min) with 5 PSI (0.34 bar) pressure drop, 141 GPM (534 l/min) with 10 PSI (0.69 bar) pressure drop.
• The flow rate for the 346BEC 3-way valve is 64 GPM (242 l/min) with a 5 PSI (0.34 bar) pressure drop, 91 GPM (344 l/min) with 10 PSI (0.69 bar) pressure drop.
• Polypropylene ball with stainless steel stem.
• Wetted parts made of corrosion-resistant materials, glass-reinforced polypropylene, Teflon, stainless steel and Viton.
