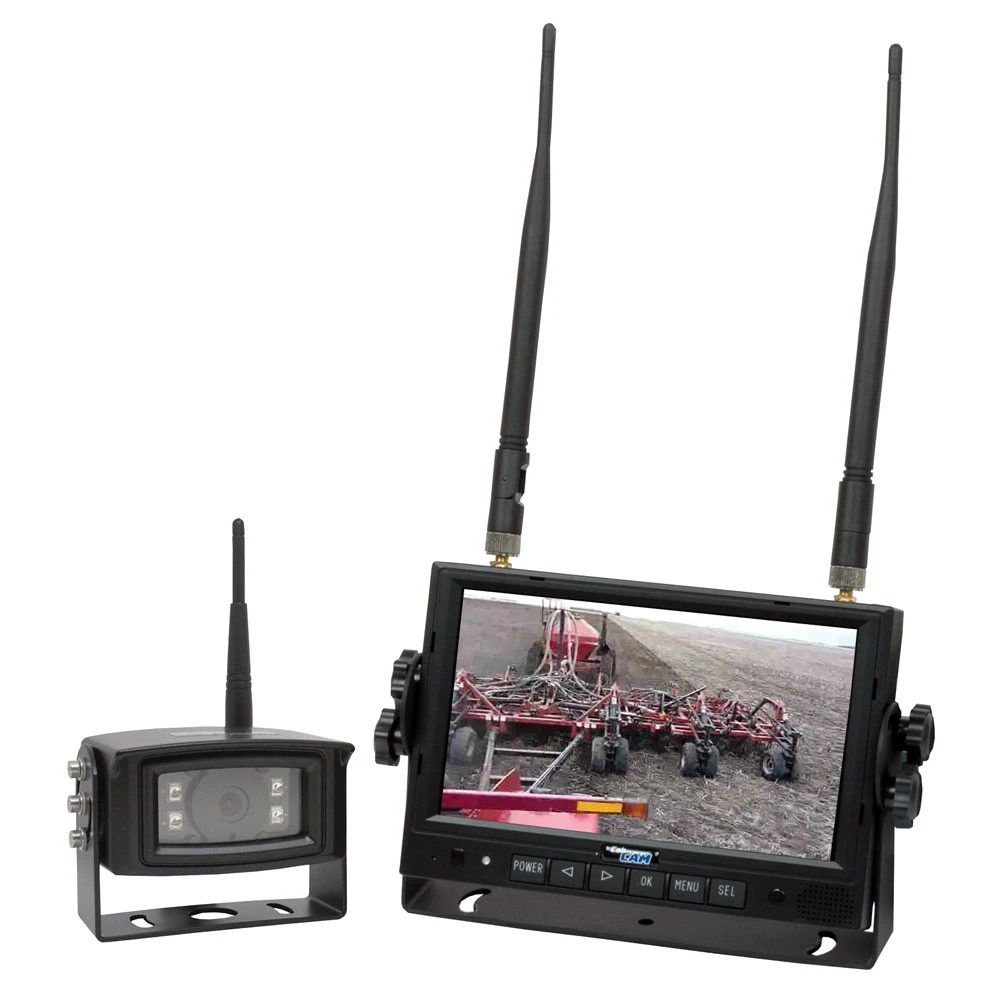

7″ CabCam Digital Wireless Quad Camera One Camera System

Digital Wireless Quad Camera System by CabCAM

Quad Monitor with Recording Capability

Weatherproof Color Digital Camera The infrared illuminators allow up to 32 feet of night visibility. Completely weatherproof and built to withstand off-road conditions. It includes audio capabilities. The transmission range is 390 feet. Comes with an antenna and power-supply jack. Requires 12-24V power source.

7″ Digital Quad Color Monitor Now you can view up to 4 cameras simultaneously on a high-resolution 7″ monitor. Image may be adjusted for horizontal and vertical with either mirror or normal viewing on the monitor or by remote. It can also automatically switch to right, left, or back-up camera views when wired into lamp circuits. The monitor has a power indicator, remote receiving window, power button, menu button, SEL button, channel selection, VOL+/-audio speaker, support attaching slot, audio/video output, power supply terminal, and automatic brightness control. Comes with a four-camera capability 2.4GHz wireless receiver with recording capability onto a micro SD/TF card (not included), and a video and audio RCA output.

Accessories Kit includes ball swivel mounting bracket with mounting pad, U-support mounting bracket with thumb screws, power wire harness, (2) DC adapters, sunshield, and remote control. (Micro SD/TF card not included.)

Digital Wireless Transmission

Digital Wireless is the transmission of audio and video signals encoded as digital packets over high band-width radio frequencies.  Digital Wireless features Frequency Hopping Spread Spectrum.  CabCam uses 2.4GHZ frequency.  The transmission between the antennas is what is considered wireless.  The cameras still need to be connected to a 12 or 24 volt power source.

Facts About Digital Wireless:

*  The signal is a highly secure and resistant to jamming and interference.

*  The signal is free from interference from external devices.

*  The strength of the signal is much higher than analog.

*  High-quality video and audio.

*  A device pairing process is required to synchronize the camera and the monitor.  Cameras can only be paired to a single monitor.  Signals from cameras will not interfere or overlap with one another.
