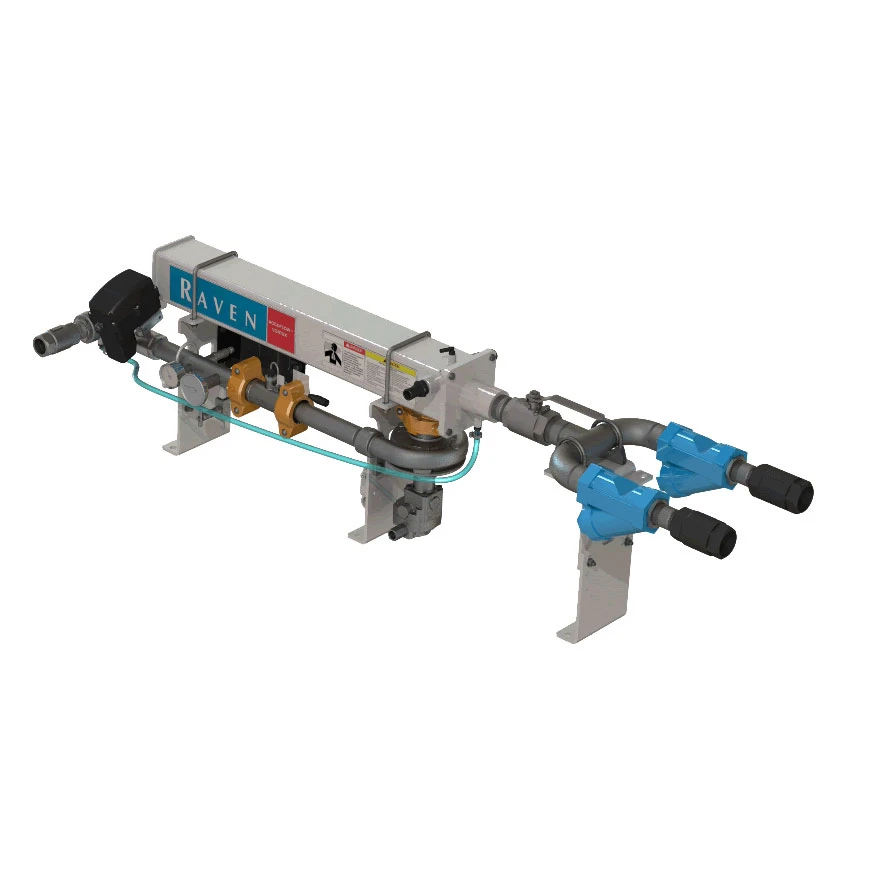

AccuFlow NH3 Vortex Kit, 1″ Dual Valve

NH3 Vortex Kit by Raven®

AccuFlow – Vortex – HP+ Systems

No more square or flange fittings required for the end of the cooler. A large O-ring fitting makes for easier seal and replacement.

• Added Pressure Relief Valve and Bleed Valve between the Control Valve and the On/Off Valve in a Two Valve system
• NPT 1.25″ threaded system replaced by the Vortex Pipe and Adapter Kit
• Kit can adapt Vortex cooler to older or existing plumbing
• Kit includes brackets, U-bolts, and Gruv-lock adapter

FEATURES & BENEFITS

Capacity options:

• Vortex 194 valves: 30+ GPM
• Vortex 1.594 valves: 50 GPM
• HP+ with Vortex cooler: 80 GPM

*Systems were tested at 40 F and 60 tank psi (Fall conditions)
Reduced from 50+ fittings in older dual cooler system to less than 30 fittings for the Vortex cooler Gruv-lock couplings

• Easier maintenance of the Flow Meter
• Less than 10 minutes to remove and re-install flow meter
• Only a single socket 7/894 wrench required Safety bleed down circuit
• Positioned at the front of the toolbar and empties into the vapor lines
• Additional needle valve for bleed down at the flow meter
• Operator is removed from the point of exhaust

Faster bleed down

• Half hour or less for full bleed down HP+ SYSTEM

Two Stage Valve Control System

• When flow demand exceeds a fully opened valve, the HP pump is triggered to reach the desired rate.

Dynamic Valve Control

The Control Valve is commanded to react at a slower speed for lower rates and at a faster speed for higher rates.
