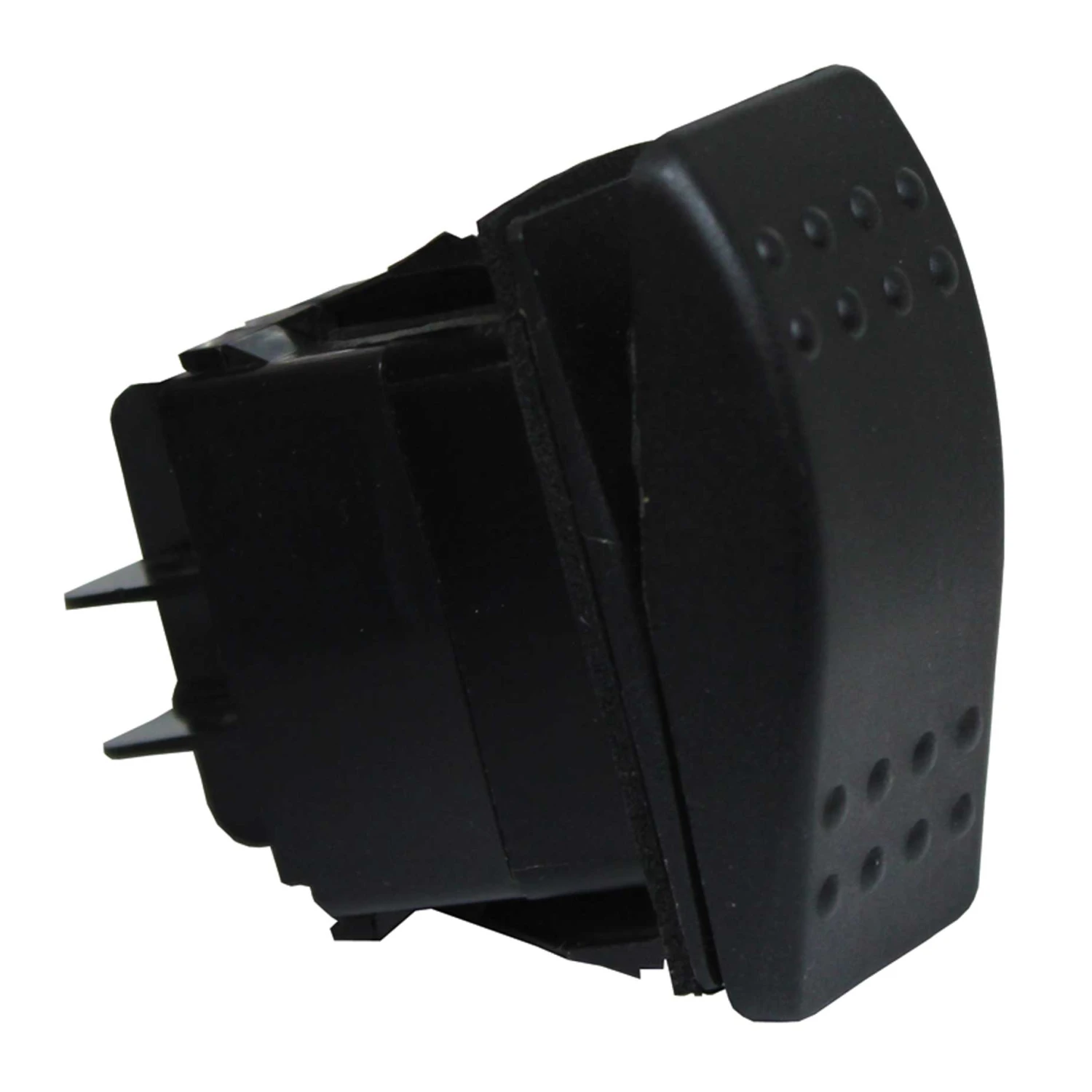

Contura Rocker Switch, Momentary On-Off-Momentary On, 6 Blade

Popular in the marine industry, the Contura rocker switches have a sealed front panel component to keep out dust and moisture. Certified with IP66 and IP68, signifying complete protection against dust and prolonged spray and submersion under pressure. These rockers are vibration, shock, thermoshock, moisture, and salt-spray resistant. Temperature range from -40°C to 85°C, 20 amp at 12V DC. Blade terminals, silver contacts, black nylon, black plastic housing 1.93″ x .96″.

SP Single Pole:
A switch device that opens, closes or changes connection in a single conductor of an electrical circuit.

DP Double Pole:
A switch device that opens, closes or changes connection between two conductors of an electrical circuit.

ST Single Throw:
A switch that opens, closes or completes a circuit at only one of the extreme positions of the actuator.

DT Double Throw:
A switch that opens, closes or completes a circuit at both extreme postions of its actuator.
