Sensaphone 800 8 Zone Alarm Dialer

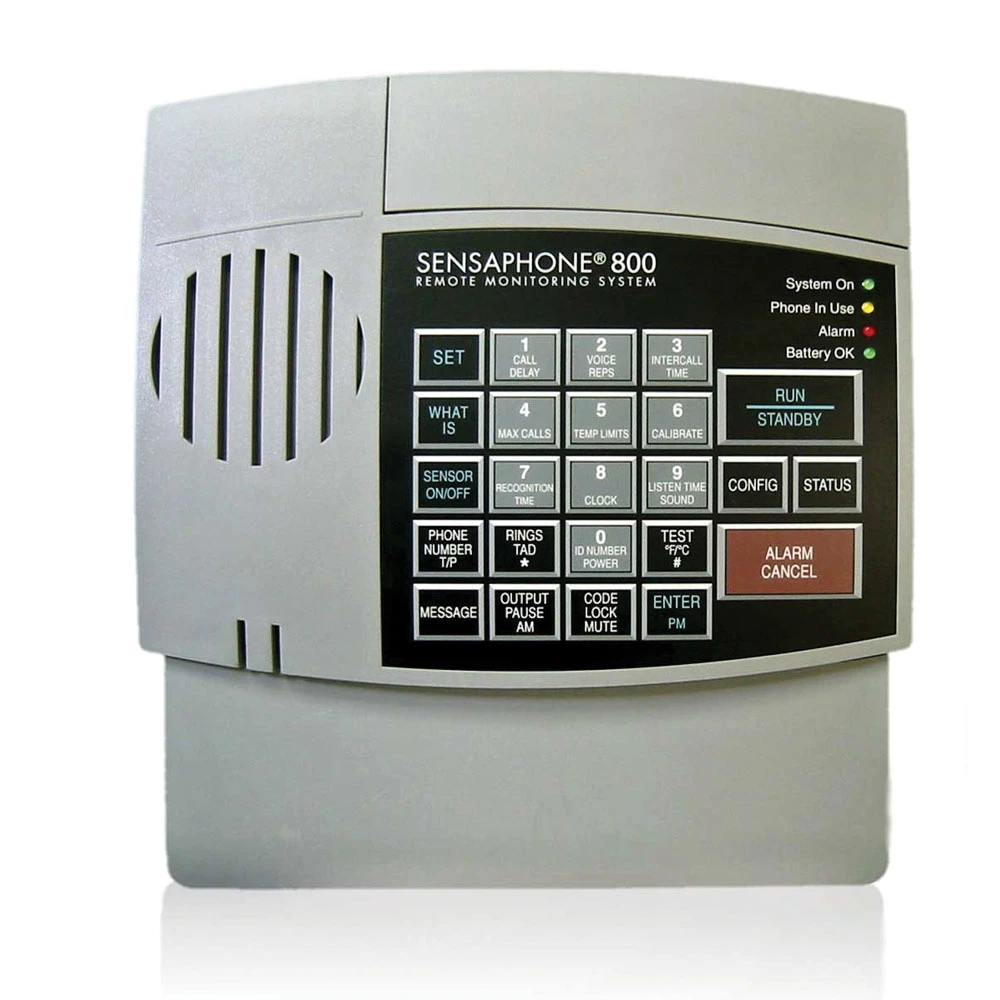

Sensaphone 800 8 Zone Monitoring System

The Sensaphone 400 or 800 Alarm monitors your house, cottage, cabin, computer rooms, equipment centers, offices, or any unattended facility to detect power failures, temperature extremes, intrusions, water incursion, sounds such as smoke and burglar alarms, and other conditions of your choice. Including a relay output, it allows you to turn up the heat before you arrive or remotely control other devices! Record your own voice message for each alarm zone.

Sensaphone 400/800 Features

Recordable Voice: The 400 / 800 has the added benefit of giving the user the ability customize the voice messages for each of the input alarms and the identification message. The messages are recorded by the user through the built-in microphone. This is a great new feature being added to the Sensaphone 400 / 800. Now that the two new desktop products have real voice programming, every Sensaphone product now supports recordable voice.

Inputs: 4 or 8 Inputs allow for monitoring of temperature sensors, humidity sensors, water leak sensors, contact closures and more. The 400 / 800 ships with a thermister installed on the first zone for local temperature monitoring.

Output: Both the Sensaphone 400 and 800 models now include a relay output that can be programmed to operate automatically upon alarm or manually from a remote touch tone phone. It can be used to trip a local alarm. Line Seizure: Line seizure is now a standard feature on the Sensaphone 400 / 800.

Phone Line Monitoring: There is a new phone circuit in the 400 / 800 that monitors the integrity of the phone line. If the phone line is cut or disconnected, an LED will flash and optionally the output relay can be tripped at the same time for a local indication of a problem.

Batteries: The Sensaphone 400 / 800 has a 24 hour battery backup capability with the use of 6 C cell batteries. The batteries are changed from the front of the unit, so if it is wall mounted, you do not have to remove it from the wall to change the batteries.

Phone Test: Each dial out phone number can be tested from the keypad. When the test is being conducted, the speaker will play the sounds that are occurring on the real phone line. This makes it very easy to determine if the user needs to first dial a 91992 or an 91892 before the destination phone number, or other special dialing sequences.

LED’s: Additional status LED’s are provided on the front of the 400/800 to show battery condition, alarm status, and phone status.

Power: The power adapter for the Sensaphone 400 / 800 is a standard plug-in adapter, which makes it easy to feed through openings and easy to remove.
