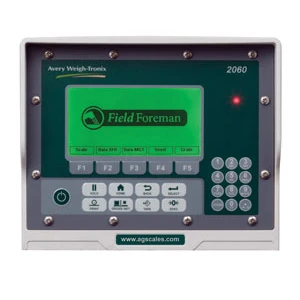

Weigh-Tronix Model 2060, 4 X 5-Pin AWT Connectors W/Two RS-232 & I/O

Model 2060 Indicator by Avery Weigh-Tronix

Mulitpurpose Indicator

Standard Field Foreman Application Software From seed to grain, one indicator, two seasons. Field Foreman provides powerful, user friendly scale software for grain carts and seed tenders. Easily and efficiently track all planting and harvest transactions while taking advantage of key standard features including SmartLoad automatic grain cart load tracking.

FEATURES & BENEFITS

The 2060 indicator is a full featured indicator that includes a Load/Unload scale along with Ag specific application software. The 2060 boasts industry leading technology while providing a simple, user friendly interface to rival any other on the market.

694 Backlit Graphic Display 96 694 diagonal display is easy-to-read, regardless of viewing angle or lighting conditions. Graphic display provides User interface enhancements including bar graphs that standard LCD displays are unable to achieve. Specifically designed to provide clear visibility in the various lighting conditions of the Ag environment.

Standard Load/Unload 96 At any time the user can simply enter in the target weight to load/unload for simplicity combined with accuracy.

F1-F5 Soft Keys 96 Allows unique selections above the soft keys in each software screen making the user process intuitive.

Alpha-Numeric Keypad 96 Allows user to easily enter in words and numbers.

Tactile Keys 96 Allows user to easily find buttons and receive instant feedback as their selection is made.

Advanced Digital Filtering 96 Minimizes the effects of vibration/motion on the scale.

Hold Key 96 Provides stable weight readings when moving the scale between loading/unloading locations.

Multiple Connectivity (I/O Port) 96 Connects external devices such as door input sensors, audible/light alarm, and OEM custom designed I/O controls.

2 RS-232 and 1 I/O (Input/Output) port as standard 96 The 2060 can easily interface to peripheral devices including remote displays and printers straight out of the box. Third RS-232 port is optional.

Self-Diagnostics 96 Displays messages, simplifies troubleshooting. Automatic Shut-Off 96 Activates when user-programmed sleep timer expires.

Weatherproof Design 96 Stands up to harsh environments for years of accurate, reliable service. Built to IP65 standard.

Robust Connectivity 96 Two RS-232 serial ports and one 9-pin Input/Output port are standard. Optional third RS-232 serial port, ethernet WiFi, ZigBee point to point wireless, and Bluetooth.

Alarm Light 96 Extra Bright LED front panel alarm light indicates when loading/unloading target weight is reached.

USB Keyboard Connectivity 96 Use alpha numeric keypad to enter data or connect USB Keyboard for data entry. USB Connectivity 96 Easily transfer setup data from Farm Foreman on the PC to the 2060 and transaction data from the 2060 to Farm Foreman on the PC.
